AMP101800030 - 1 W Ultra-Wideband Amplifier, Module device

Main features

  • 1 W Ultra-Wideband Linear Amplifier Device
  • 10 … 18000 MH
  • output power +31 dBm typ.
  • high OIP3 +40 dBm typ.
  • high dynamic
  • self test function
  • temperature monitor
  • optical power and status indication
  • Status signaling contact (floating)
  • Heat sink for passive cooling
Price request Datasheet Ask a question

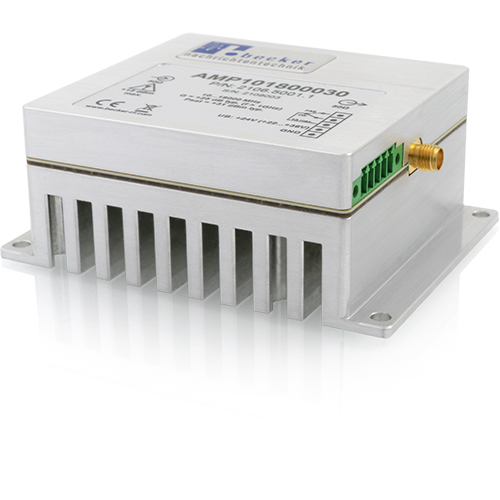

AMP101800030 is an extremely wideband RF amplifier with up to 1 W output power for the frequency range from 10 MHz to 18000 MHz.

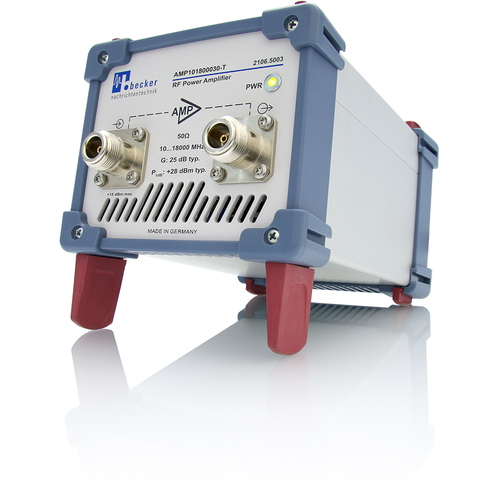

With its extremely large bandwidth, the device offers very good linearity properties as well as high dynamics. The AMP101800030-T is used, for example, in measurement environments in research and development (R&D), broadband communication, as well as radio reconnaissance and radio monitoring. All amplifier devices of the AMP series are designed in 50 Ohm technology.

AMP101800030 1 W Ultra-Wideband Amplifier, Module device
