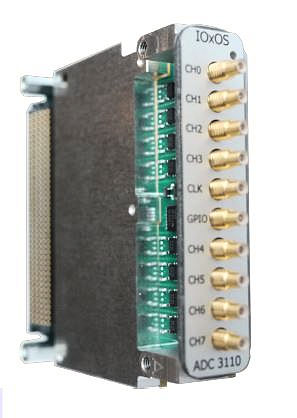

ADC_3110 - FMC Eight Channel 16-bit Digitizer

Main features

  • Eight (8) channels 16-bit/250Msps ADC
  • Single width FMC VITA 57.1-2008
    • HPC 400 pins connector
    • Ten(10) SSMC front panel connectors
    • 8[W] typical power consumption
    • FMC 12[V] power supply not required
    • LVDS high speed interface
  • Based on latest generation ADC technology
    • TI ADS42LB69 dual 16-bit/250 Msps
    • Single ended AC coupling (ADC_3110)
    • Single ended DC coupling (ADC_3111)
    • High-speed LVDS data read-out
  • Sophisticated clock tree distribution
    • TI LMK4906 (dual PLL)
    • On-board ultra-low noise oscillator /VCXO
    • External SSMC Clock reference
  • On board low noise power supplies generation
    • FMC 12P0V power supply not used
  • Temperature sensor monitoring through SMBus
  • XILINX Virtex 6/7 FPGA VHDL Design Kit
  • LINUX Software Library
  • Direct EPICS support on carrier
Price request Datasheet Ask a question

The ADC_3110/3111 is  a VITA 57.1-2008 standard eight (8) channels 16-bit 250 Msps ADC.
The ADC_3110/3111 are the first members of complete family of FMC VITA 57.1 data acquisition product line which includes high speed DAC, GSPS ADC 10/12 bits and programmable digital IO.
The eight(8) single-ended 50 Ohms analog inputs are supplied through SSMC high frequency connectors. AC coupling (ADC_3110) and DC coupling (ADC_3111) versions are available.
Three (3) AC coupling input conditioner schema is also available for optimal target application.
Clock tree is implemented with a high precision on-board low jitter low phase noise clock controller LMK04906 fully programmable by the carrier-board. The clock reference source is selectable from front panel SSMC input or from an on-board ultra- low phase noise XCO/VCXO.
A user programmable LVTTL GPIO SSMB can be defined as TRIGGER, GATE, CLOCK replication or any user defined function.

ADC_3110-A0 - AC coupling version (dual TC1-1-13MX+)

Digitizer
ADC_3110-A1 - AC coupling version (single TC1-1X+)

Digitizer
ADC_3110-A2 - AC coupling version (dual TC1-1-13MX+) with on-board VCXO

Digitizer
ADC_3111-A0 - DC coupling version

Digitizer
FDK_3110 - FPGA VHDL Reference Design Kit

Digitizer
ADC_3110 FMC Eight Channel 16-bit Digitizer
ADC_3110-A0 AC coupling version (dual TC1-1-13MX+)
ADC_3110-A1 AC coupling version (single TC1-1X+)
ADC_3110-A2 AC coupling version (dual TC1-1-13MX+) with on-board VCXO
ADC_3111-A0 DC coupling version
FDK_3110 FPGA VHDL Reference Design Kit
