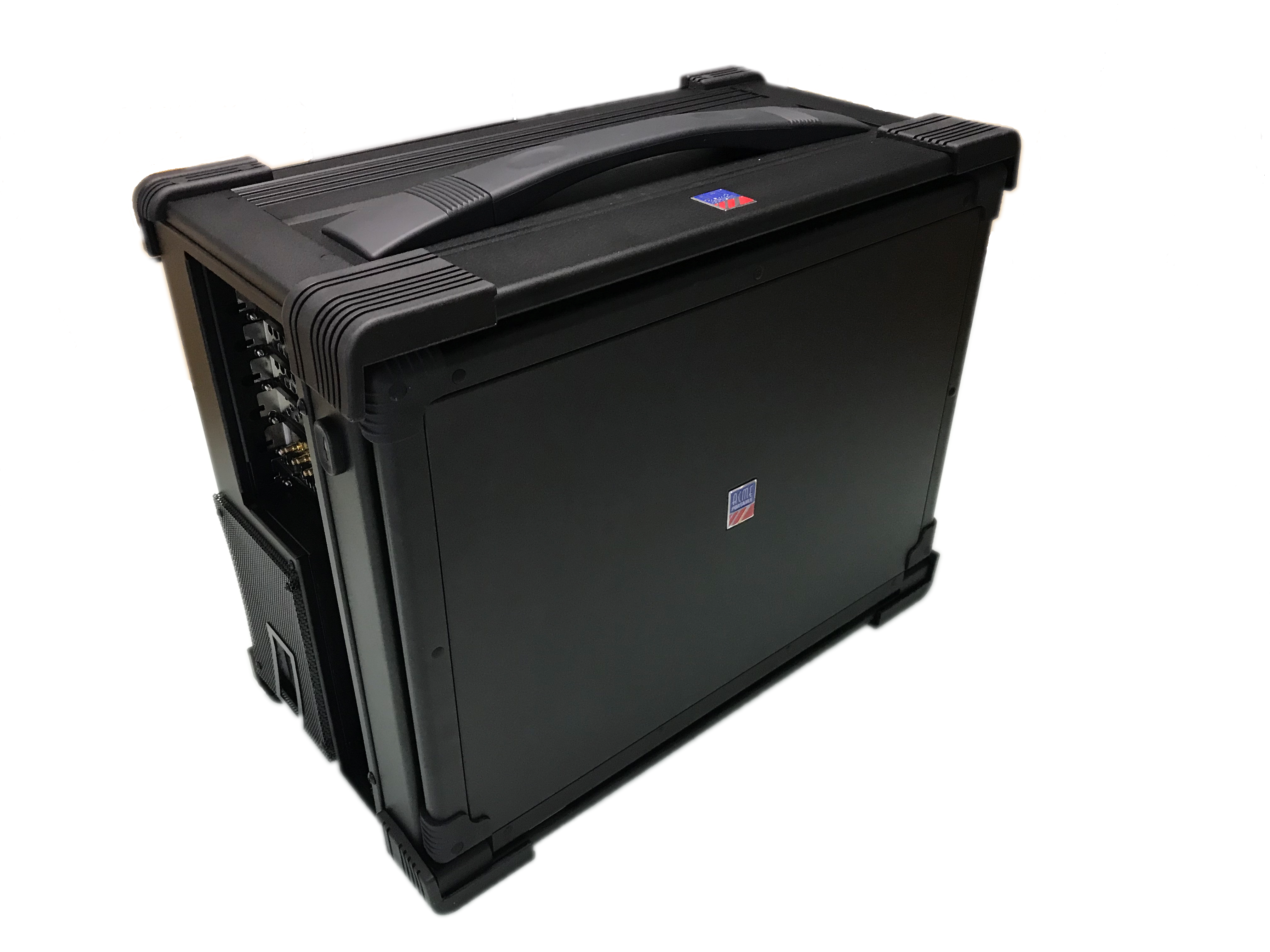

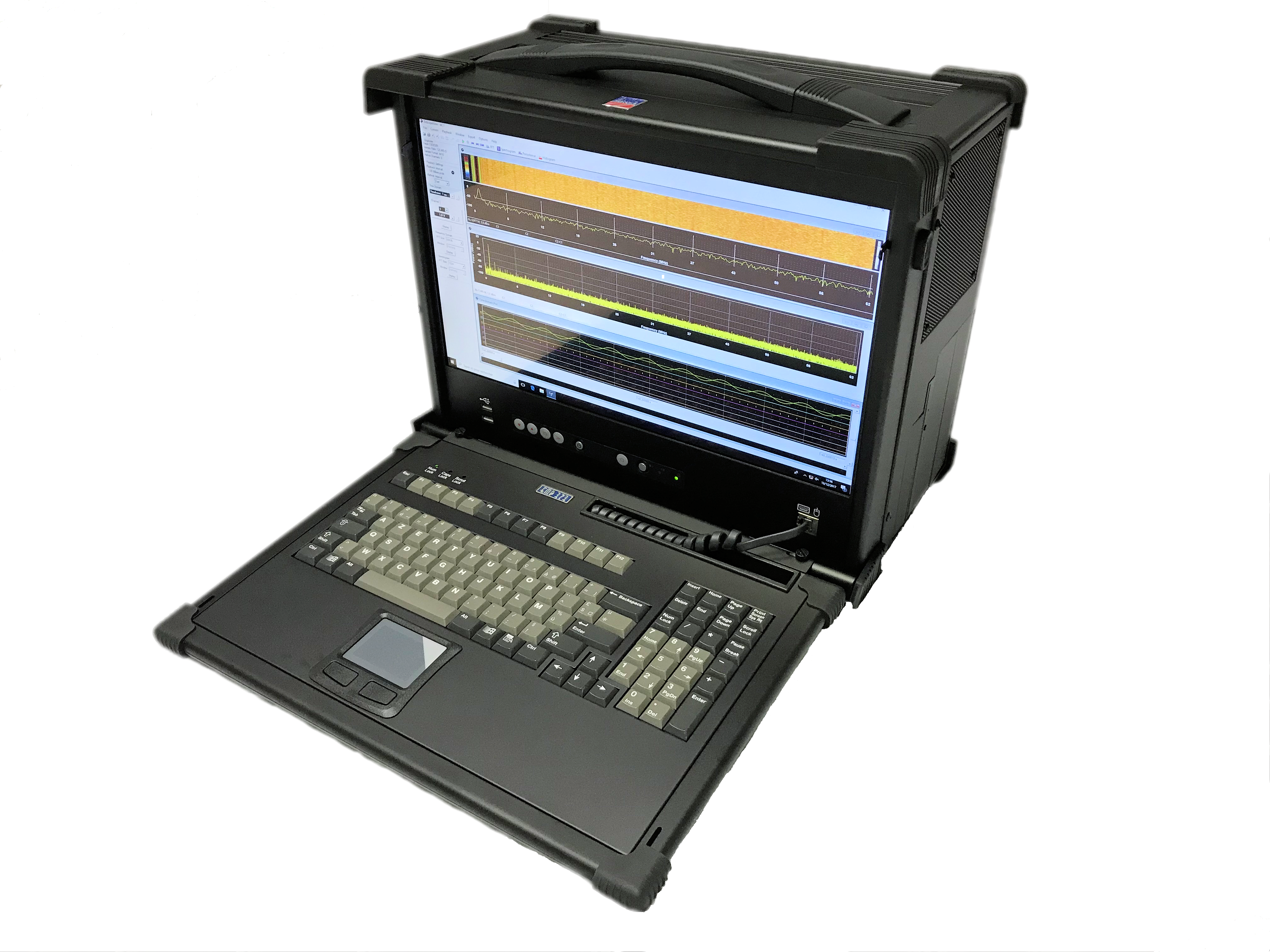

AcquiSTREAM-TR1000 is a high performance portable transient recorder. The recorder integrates all functionalities expected from a transient recorder. The hardware combines in a compact rugged portable unit, high-performance, Intel Xeon™ Silver 4 cores 3rd generation Windows10® PC with a large high-resolution screen, two slots acquisition for continuous recording and 4 slots data storage. Signal can be recorded in 12, 14, 16-Bit resolution at sampling rates as fast as 3GS/s.
AcquiSTREAM-RT1000 - High Speed Transient Recorder
Main features
- High Performance PC
- Up to 3GS/s sampling rate
- 12 and 16-Bit Digitizers

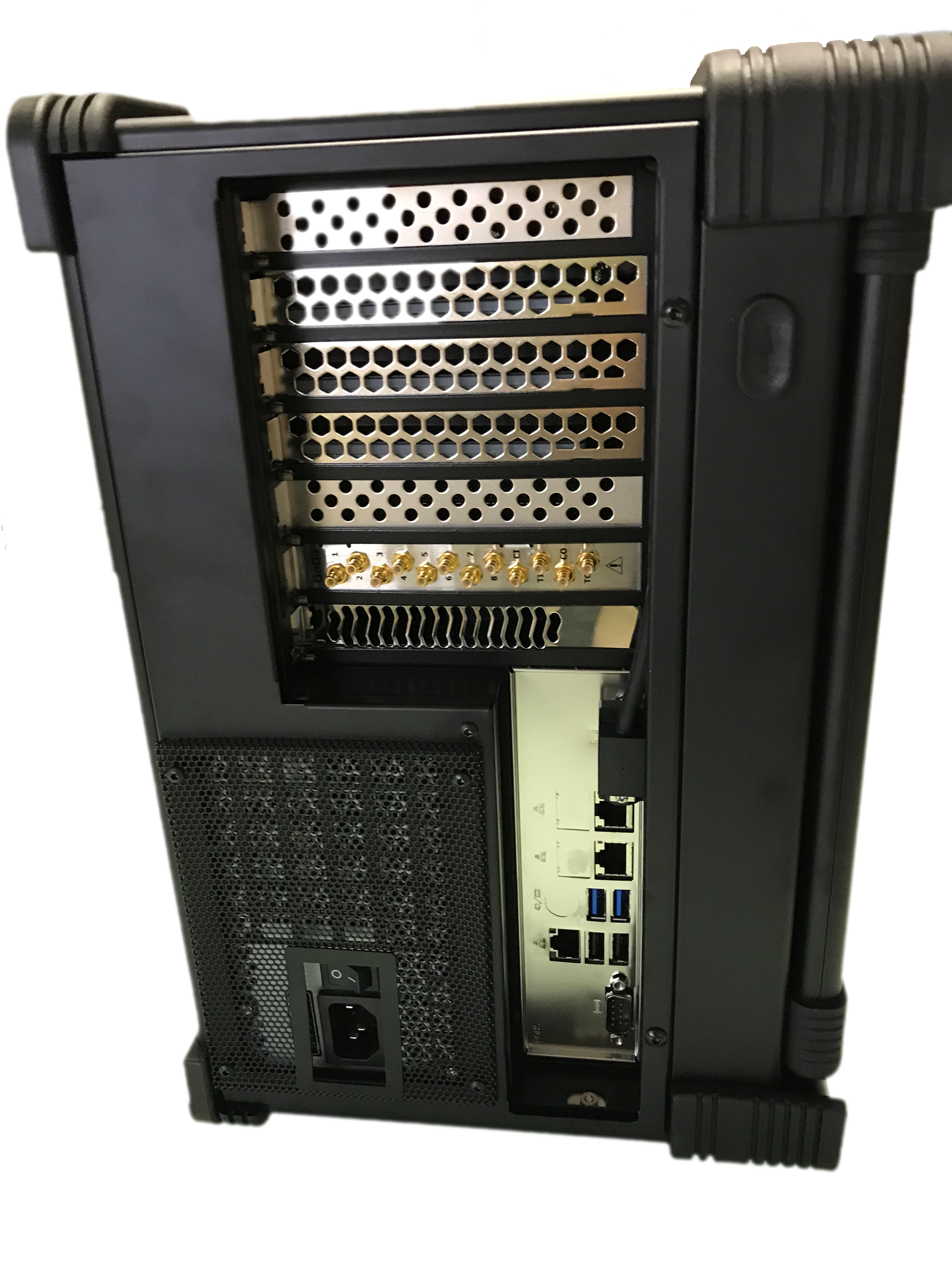

- Two PCI Express slots for digitizer Cards
- Up to 16 high-speed analog channels
- Four PCI Express slots for Data Storage
- Up to 8 Tbytes of disk space
- Up to 4 GBytes/Sec continuous streaming
- Up to 30 minutes of storage at maximum 4 GBytes/Sec
- Standard Software for Acquisition and storage
| Option-Mem64G - Memory Upgrade to 64G DDR4 DRAM Recorder |
|
| Option-MEM128G - Memory Upgrade to 128G DDR4 DRAM Recorder |
|
| Option-O100 - 8 Channels Digitizer 100 MS/s, 2GS (4GB) memory, 14-Bit Recorder |
|
| Option-O125 - 8 Channels Digitizer 125 MS/s, 2GS (4GB) memory, 14-Bit Recorder |
|
| Option-R14 - 4 Channels Digitizer 200 MS/s, 4GS (8GB) memory, 14-Bit Recorder |
|
| Option-R16 - 4 Channels Digitizer 200 MS/s, 4GS (8GB) memory, 16-Bit Recorder |
|
| Option-RM2-500 - 2 Channels Digitizer 500 MS/s, 4GS (8GB) memory, 16-Bit Recorder |
|
| Option-RM4-500 - 4 Channels Digitizer 500 MS/s, 4GS (8GB) memory, 16-Bit Recorder |
|
| Option-RM2-1G - 2 Channels Digitizer 1 GS/s, 4GS (8GB) memory, 16-Bit Recorder |
|
| Option-E3G - 2 Channels Digitizer 3 GS/s, 4GS (8GB) memory, 12-Bit Recorder |
|
| Option-SDK - SDK Pack on CD including C/C++, LabVIEW®, MATLAB® Recorder |
| AcquiSTREAM-RT1000 | High Speed Transient Recorder |
| Option-Mem64G | Memory Upgrade to 64G DDR4 DRAM |
| Option-MEM128G | Memory Upgrade to 128G DDR4 DRAM |
| Option-O100 | 8 Channels Digitizer 100 MS/s, 2GS (4GB) memory, 14-Bit |
| Option-O125 | 8 Channels Digitizer 125 MS/s, 2GS (4GB) memory, 14-Bit |
| Option-R14 | 4 Channels Digitizer 200 MS/s, 4GS (8GB) memory, 14-Bit |
| Option-R16 | 4 Channels Digitizer 200 MS/s, 4GS (8GB) memory, 16-Bit |
| Option-RM2-500 | 2 Channels Digitizer 500 MS/s, 4GS (8GB) memory, 16-Bit |
| Option-RM4-500 | 4 Channels Digitizer 500 MS/s, 4GS (8GB) memory, 16-Bit |
| Option-RM2-1G | 2 Channels Digitizer 1 GS/s, 4GS (8GB) memory, 16-Bit |
| Option-E3G | 2 Channels Digitizer 3 GS/s, 4GS (8GB) memory, 12-Bit |
| Option-SDK | SDK Pack on CD including C/C++, LabVIEW®, MATLAB® |
