AcquiCrate-6U-17S-VME - 17 Slots 6U - VME System Platform

Main features

  • VME chassis 17 slots 7U
  • Complies with IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103 standards
  • 1U ventilation unit included with air flow from bottom to top
  • Fan and voltage monitoring



Price request Datasheet Ask a question

1 x VME 64x card rack, cover / bottom plate perforated, executed in aluminium, screened, with IEEE guide rails and ESD clip mounted at the bottom, with 3 DC fans

1 x VME 64x backplane, 6 U, J1 / J0 / J2, 21 slot, with ADC (Automatic Daisy Chain), with 4x P47 connectors for 6 U CompactPCI power supply units

2 x CompactPCI power supply unit with wide range input 90 – 264 VAC, 400 W, (3,3 V / 55 A, 5 V / 55 A, 12 V / 14 A, –12 V / 4 A) with PFC

1 x Partial front panel 8 HP / 6 U with EMC spring, with cutout for power supply connector

1 x Power supply connector with fuse and filter

1 x Blanking plate 8 HP / 6 U with EMC spring

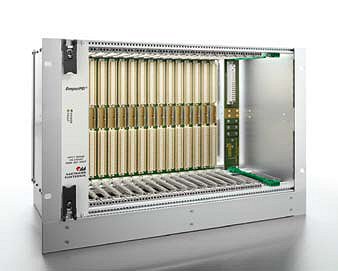

LMH0000160 - VME64x 7U/84HP 17 slots with Fixed fans

Rack VME

AcquiCrate-6U-17S-VME 17 Slots 6U - VME System Platform
LMH0000160 VME64x 7U/84HP 17 slots with Fixed fans
