AcquiCrate-3U-8S-cPCI-flat - CPCI Basic System 3U 84 HP - Depth 280 mm

Main features

  • Backplane 8 slots 3U, 5V or 3.3V I/O , 32 Bit / 33 MHz
  • No Fan Tray
  • 300 Watts Power supply
  • Rack 3U, 84HP, 280 mm depth
    Standard IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103
Price request Datasheet Ask a question

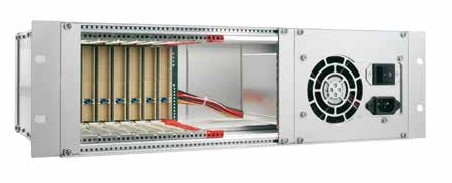

Completely assembled and wired Basic System 3U / 84 HP CompactPCI system platform

1 x CompactPCI card rack, screened, cover / bottom plate perforated, with rear wall, executed in galvanized sheet steel, with IEEE guide rails and ESD clip mounted at the bottom. Card rack acc. to IEEE 1101.1, 1101.10 / 11 and IEC 60297-3-101, -102, -103

1 x CompactPCI backplane, 3 U, 8 slots, 32-bit / 33 MHz, system slot on right side, with ATX connector, with rear I/O

1 x ATX power supply unit with wide range input 90 – 240 VAC, 300 watts

LMH0000100 - Rack 8 Slots, 3U, WO Backplane 5V

Rack cPCI

LMH0000330 - Rack 8 Slots, 3U, WO Backplane 3.3V

Rack cPCI

AcquiCrate-3U-8S-cPCI-Flat CPCI Basic System 3U 84 HP - Depth 280 mm
LMH0000100 Rack 8 Slots, 3U, WO Backplane 5V
LMH0000330 Rack 8 Slots, 3U, WO Backplane 3.3V
