The ACQ5000 5Gb/s PCIe Expansion System allows operation of 4 PCIe x1, x4, x8 and x16 cards remotely from the computer system.
No additional programming and drivers are required. Any type of PCI Express data acquisition units, digitizers/oscilloscopes, waveform generators can be installed.

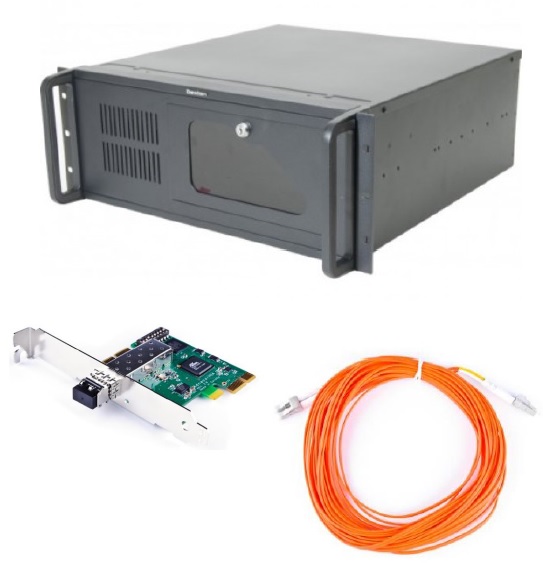

ACQ5000 - 5 Gb/s PCIe Gen2 Over Fiber Optic Expansion System, 4 PCIe slots
Main features
- 4 PCIe slots available from remote installation
- Backplane with 4 PCIe x16 slots (electrical x1)
- Selectable 2.5 Gb/s or 5 Gb/s PCIe communication over fiber optic cable
- Optical isolation, up to 10km fiber optic
- Standard pluggable SFP+ transceivers
- Processor and OS independent
- Power Supply ATX 550 Watts
- Option DC 9-18V 320 Watts
ACQ5000 | 5 Gb/s PCIe Gen2 Over Fiber Optic Expansion System, 4 PCIe slots |
