ACQ437ELF - 16 channels simultaneous analog inputs , 128KS/Sec, 24-bit, programmable input ranges

Main features

  • Standard configuration: 16 channels
  • 24-bit resolution
  • Sampling Frequency of 128Kech / Sec
  • Differential input
  • Two input ranges of ± 5, ± 2.5, ± 1, ± 0.5 Volt (-5) or ± 10 ± 5 ± 2 ± 1 Volts (-10)
  • SNR greater than 104dB
Price request Datasheet Ask a question

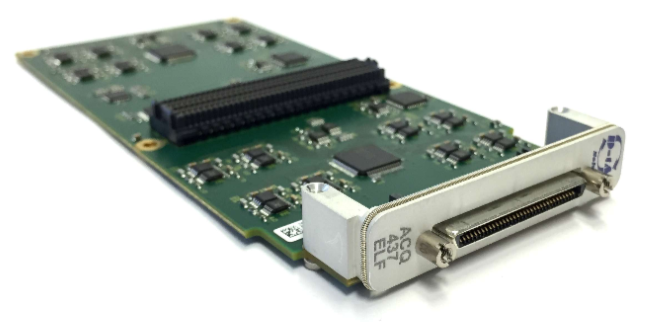

ACQ437ELF is a 16 channels, 24 bit simultaneous analog input module with variable gain per channel

ACQ437ELF-16-5 - 24 bit resolution, 128kSPS/channel, 16 channels, 4 ranges ±0.50V, ±1V, ±2.5V, ±5V

Low range

ACQ437ELF-16-10 - 24 bit resolution, 128kSPS/channel, 16 channels, 4 ranges ±1V, ±2V, ±5V, ±10V

High Range

ACQ437ELF 16 channels simultaneous analog inputs , 128KS/Sec, 24-bit, programmable input ranges
ACQ437ELF-16-5 24 bit resolution, 128kSPS/channel, 16 channels, 4 ranges ±0.50V, ±1V, ±2.5V, ±5V
ACQ437ELF-16-10 24 bit resolution, 128kSPS/channel, 16 channels, 4 ranges ±1V, ±2V, ±5V, ±10V
