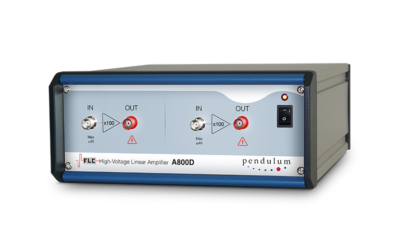

A800D - High voltage amplifier 400Vpp

Main features

  • Two identical channels
  • Bandwidth from DC to 250 KHz at 100 Vpp
  • Amplification X100 times, fixed
  • Load type Resistive || capacitive with Full bandwidth 300 pF
  • Input Impedance of 1 Mohm || 10 pF
  • Output Impedance  <0.1 ohm in the linear mode
  • Input Voltage of ±4 V Nominal
  • Output Voltage of  ±400V Max
  • Output Current  of 60 mA continuous
  • Output Slew Rate  of 250 V/µs up to 400 pF load
Price request Datasheet Ask a question

The A800D is a dual general purpose broadband linear amplifier having a fixed amplification of 100 times and capable of bipolar high voltage output of ±400V.
Any function generator or arbitrary waveform generator or any other signal source with amplitude up to ±4 V can be used as an input device.

The amplifier’s output is linear from DC up to megahertz range.

It can be used in a wide range of applications, for example to drive piezo actuators, MEMS, OLEDs, liquid crystals, etc.

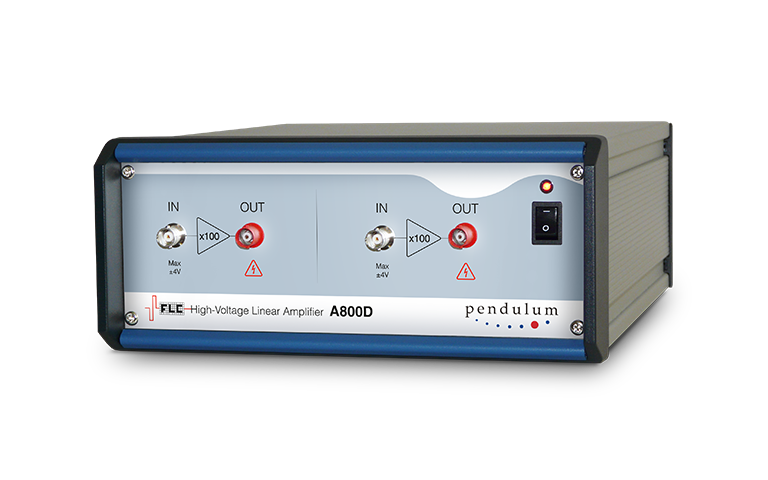

A800D High voltage amplifier 400Vpp
