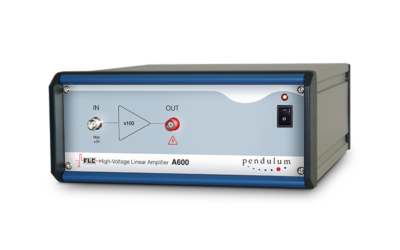

A600 - High voltage amplifier 300Vpp

Main features

  • Bandwidth from DC to 250 KHz at 100 Vpp
  • Amplification X100 times, fixed
  • Load type Resistive || capacitive with Full bandwidth 300 pF
  • Input Impedance of 1 Mohm || 10 pF
  • Output Impedance  <0.1 ohm in the linear mode
  • Input Voltage of ±3 V Nominal
  • Output Voltage of  ±300V Max
  • Output Current  of 75 mA continuous
  • Output Slew Rate  of 250 V/µs up to 300 pF load
Price request Datasheet Ask a question

The A600 is a general purpose broadband linear amplifier having a fixed amplification of 100 times and capable of bipolar high voltage output of ±300V.
Any function generator or arbitrary waveform generator or any othe signal source with amplitude up to ±3 V can be used as an input device.

The amplifier’s output is linear from DC up to megahertz range.

It can be used in a wide range of applications, for example to drive piezo actuators, MEMS, OLEDs, liquid crystals, etc.

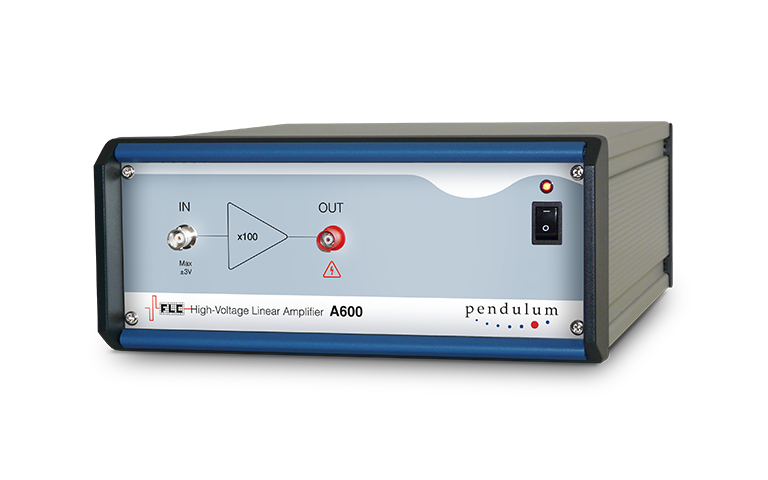

A600 High voltage amplifier 300Vpp
