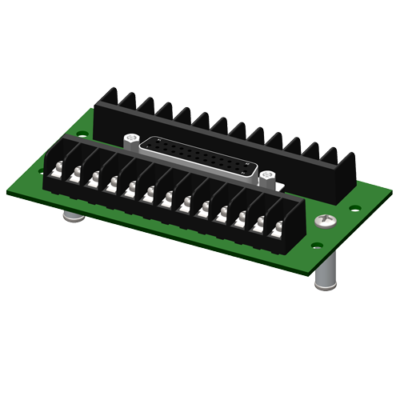

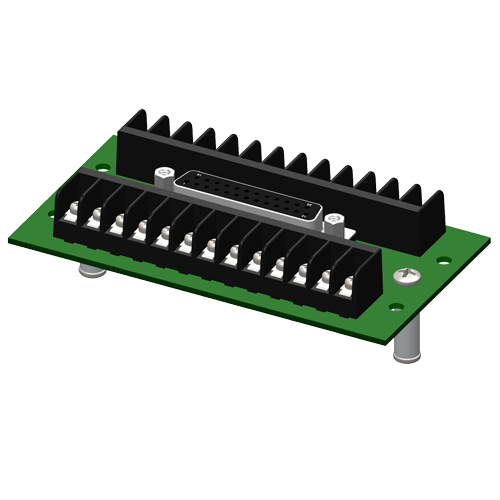

The 8BXIF is a universal interface board which converts a DB25 cable input to 25 screw terminals for discrete wire. It can be mounted on the back of the SCMXRK-002 mounting rack (8BXIF) or on a DIN rail (8BXIF-DIN).
8BXIF - Universal Interface Board
 |

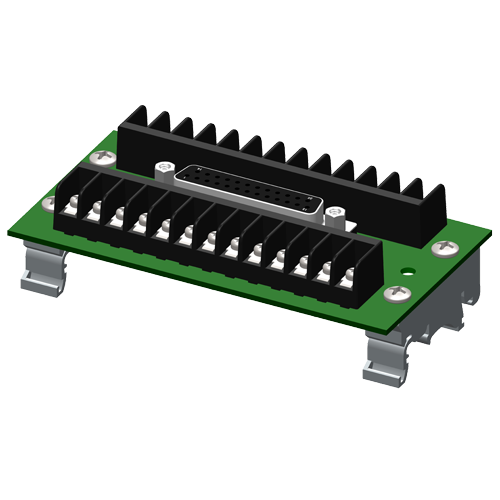

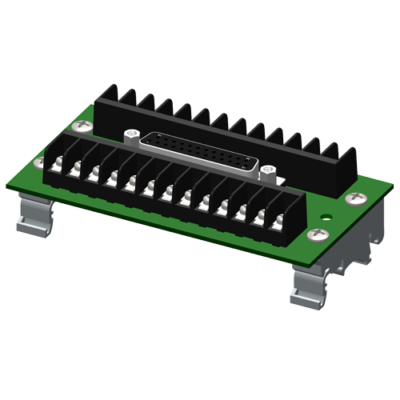

8BXIF-DIN - Universal Interface Board DIN Version Interface |
| 8BXIF | Universal Interface Board |
| 8BXIF-DIN | Universal Interface Board DIN Version |
 |
