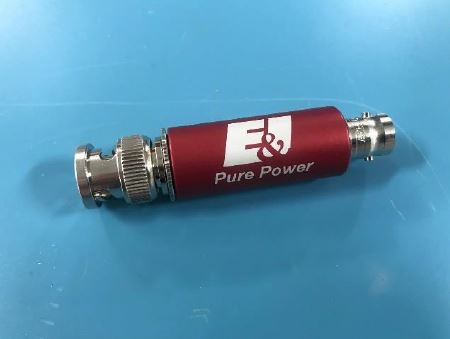

2-LIM - 2 Watts RF Power Limiter

Main features

  • Frequency Range 200 KHz – 1000 MHz
  • Max Power Input 2 Watts max
  • Rated Power Output 13.0 dBm
  • Linear Insertion Loss 0.1 dB max
  • Recovery time 22.5 nS typical
  • VSWR 1.33:1 max
  • Connections BNC
  • Temperature Range -10 – 50 C ambient
Price request Datasheet Ask a question

The E&I 2-LIM will provide extra protection for your amplifier from ESD or accidental overdrive. It is useful in stabilizing generator outputs and reducing amplitude variability. It has low loss in the linear range but then caps the output over 13 dBm

2-LIM 2 Watts RF Power Limiter
