1000S04 - 1000 watts RF amplifier, 20KHz to 400KHz

Main features

  • 1000 Watts
  • 20KHz à 400KHz
  • Gain de 60dB
  • Class D
Price request Datasheet Ask a question

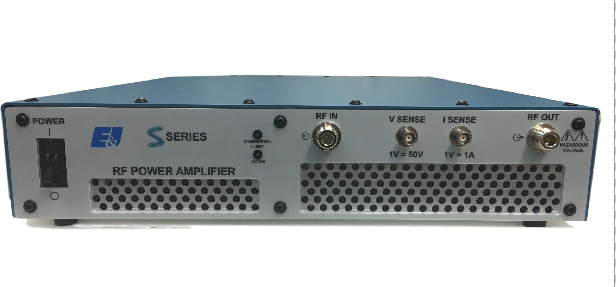

The 1000S04 Amplifier is a rugged source of RF power for ultrasonic applications. It is a totally solid state solution employing Power MOSFETS in a full bridge PWM power stage. Operating at a significantly higher frequency than the fundamental signal

The 1000S04 produces 1000 Watts of power over a frequency range of 20 to 400 KHz, with a nominal power gain of 60dB (+/-1dB). Operation over the entire frequency range is possible without the need for any switching or tuning

Sample ports are provided: 50ohm termination
Voltage Sample 1V/50Vrms
Current Sample 1V/Arms
Samples are the actual output waveform scaled as shown.
